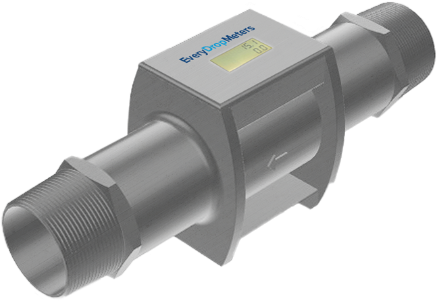

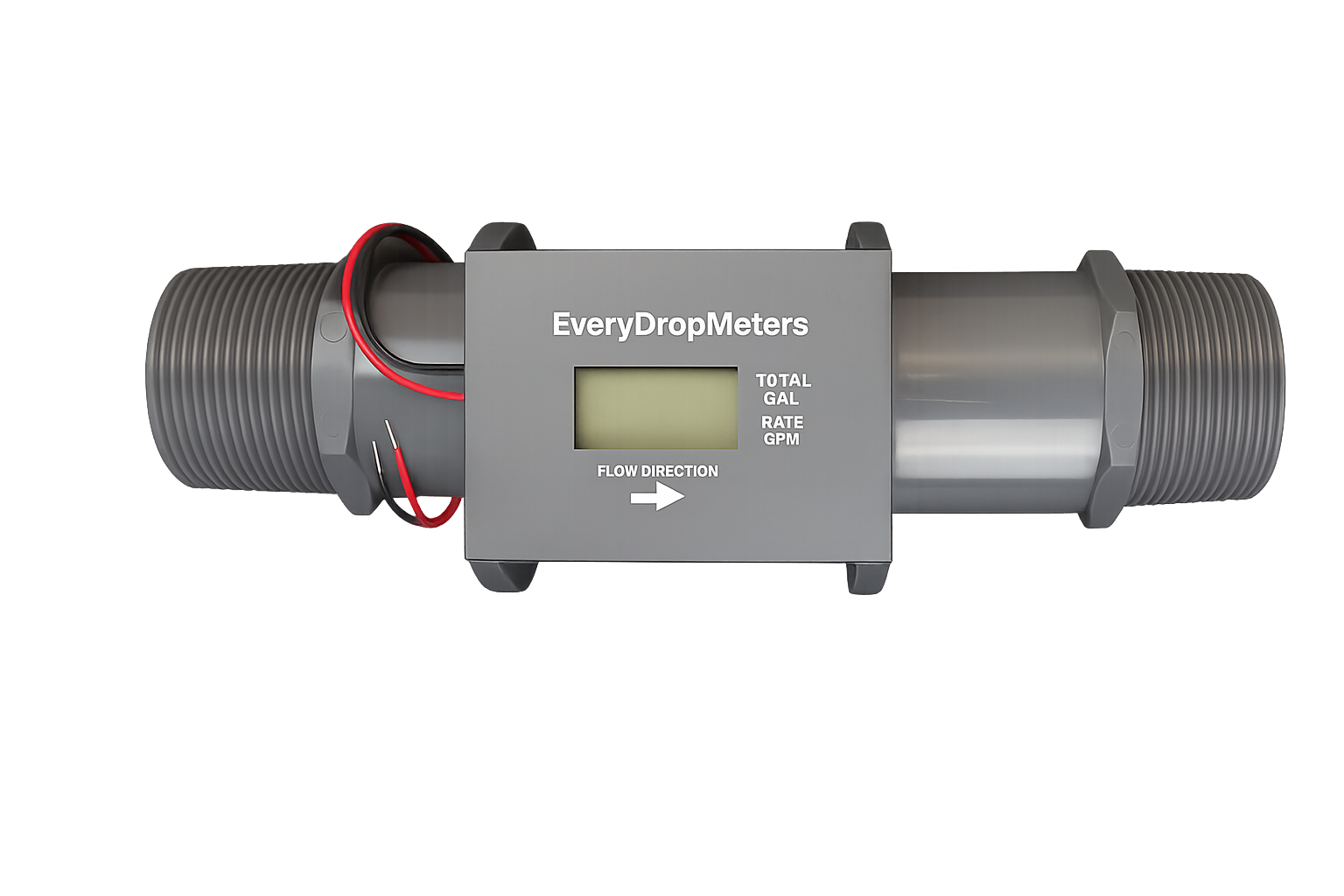

EveryDrop WM-2100 2″ Wired Vortex Flowmeter
Disclaimer:
The images shown in this webpage are digital renderings and are for illustrative purposes only. Actual product appearance, features, and specifications may vary. We reserve the right to make changes without prior notice. Please refer to the final product for precise details and accuracy.
PRODUCT SPECIFICATIONS:
Size: 2”
Flow Range (Indicated): 15 to 150 GPM
Accuracy:
- RANGE 15 to 150 GPM: +/-2%
- RANGE 150 to 200 GPM: Usable Over-range; Accuracy Not Guaranteed (~2%)
Update Rate:
- RANGE 15 to 200 GPM: 1.5 seconds
Pressure Loss at 150GPM: Less than 1.0 psid
Burst Pressure: 350 psi minimum (Meter body)
Operating Temperature: 32 F to 140 F
Construction Materials:
- Vortex Generator: ABS
- Vortex Sensor: EPDM Rubber (wetted surface)
- Meter Body: ABS
LCD Display:
- Flowrate (GPM): 3 digit, 0.1 GPM resolution to 99.9 GPM, then 1 GPM
- Flow Total (Gallons): 7 digit, 0.1 Gallon resolution
- Alerts: Out of flow range, Leak Detect
- Auto Reset: 10 Million gallons or power cycle
