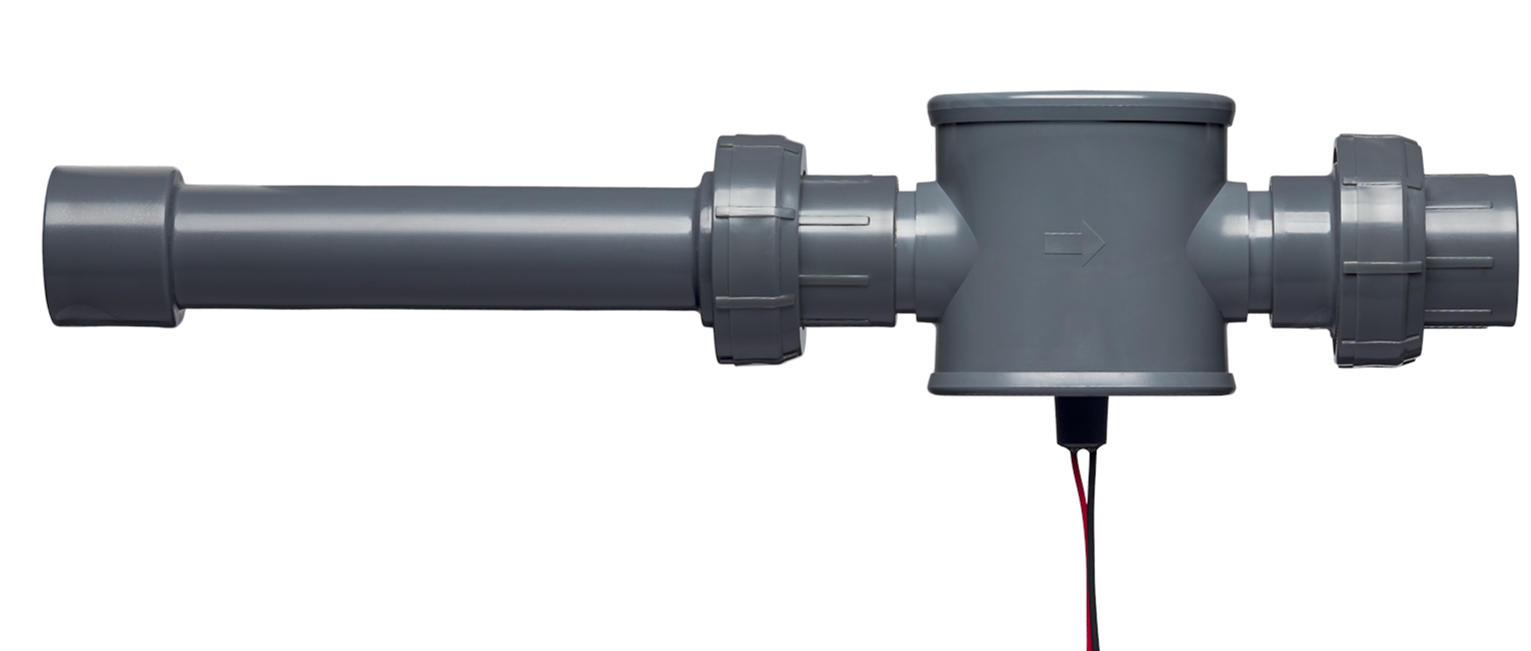

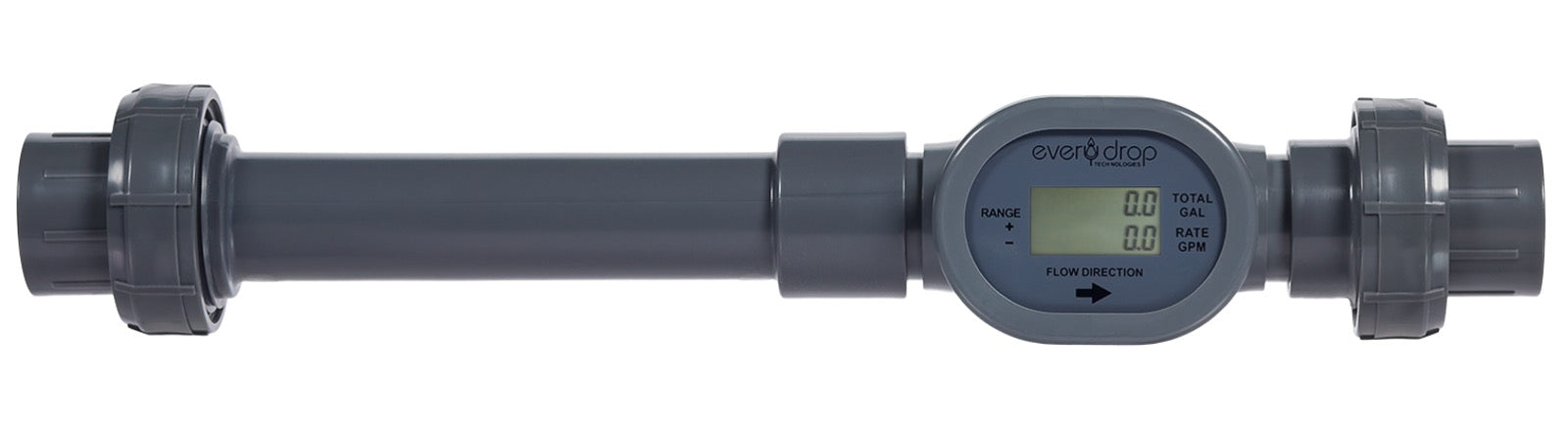

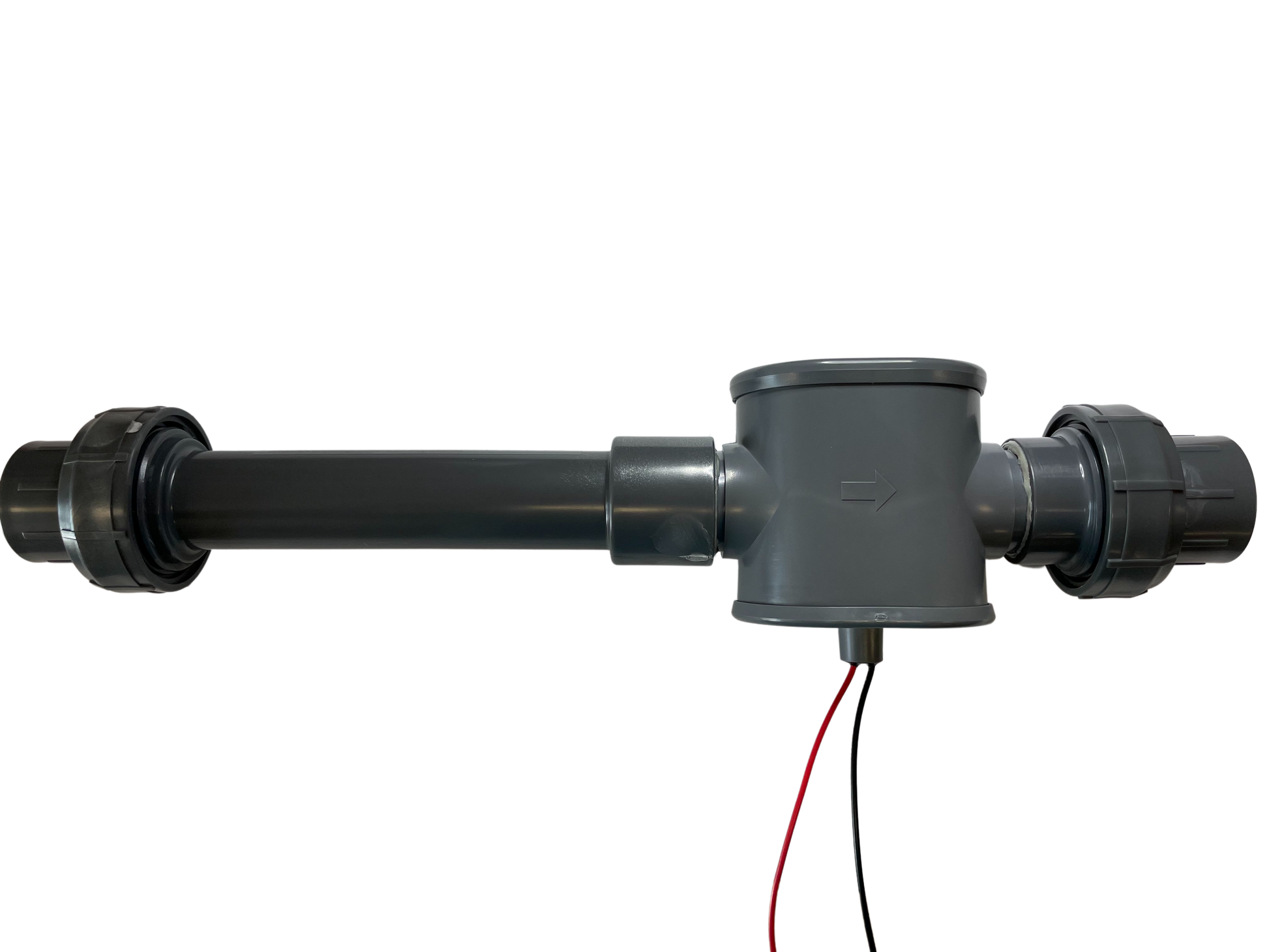

The EveryDrop Model 1004-EX is a 1” irrigation flow meter that provides highly accurate, real-time flow monitoring by using reliable vortex technology. It features a display and has a 2-wire interface with a shared power and pulse signal, making it compatible with Rachio and many other smart controllers. This model comes with an upstream straight length to smooth out the flow for maximum accuracy, and unions for easy installation. Rated for outdoor installation only. Not rated for potable water; this flow meter should be installed after a backflow preventer or similar device.

Benefits:

In combination with your smart controller, an accurate flow meter can alert you to leaks or abnormal flow conditions caused by broken pipes or malfunctioning sprinkler heads. It also allows you to monitor water usage in terms of gallons applied, not just how long a zone was turned on.

Highlights:

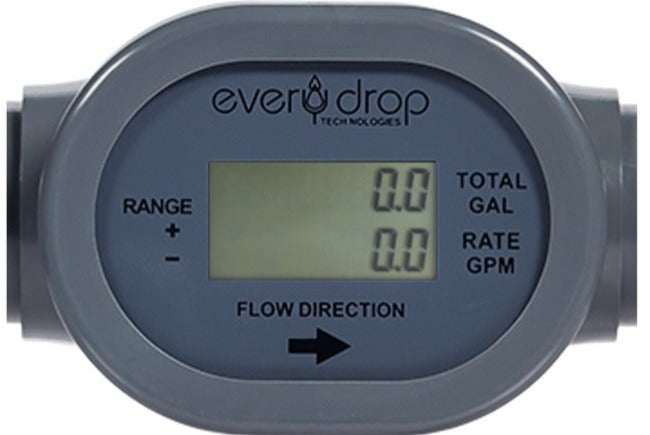

• Digital Display with:
  • Flow rate in GPM
  • Total in Gallons
  • Leak Detect/Over Range Indications

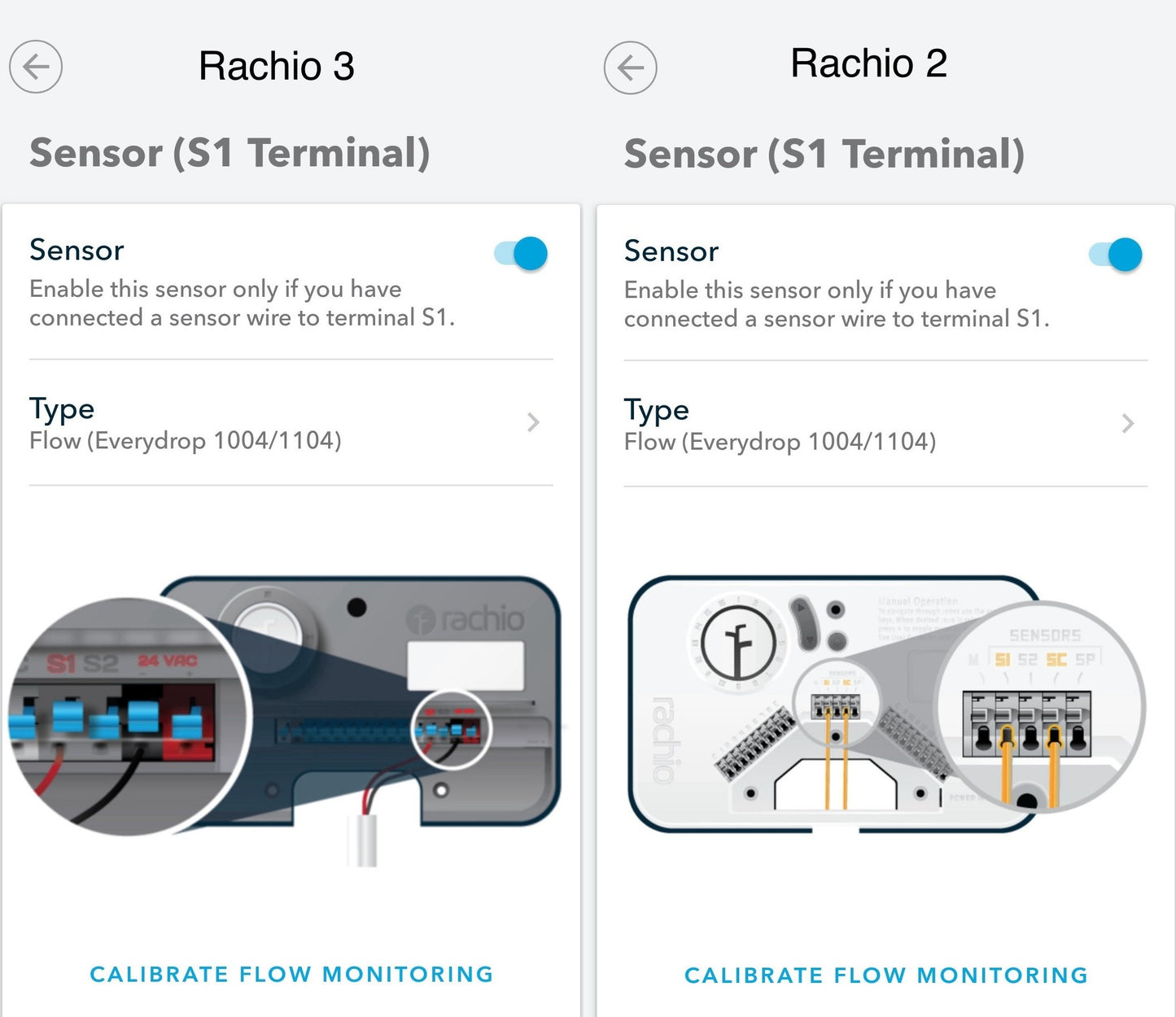

• 2-wire interface to popular controllers such as Spruce and Rachio
• Power/signal and ground on 2 wires
• Includes PVC unions for easy installation
• See user manual and installation guides for details

Download Model 1004-EX User Manual

Download 1" Flow Meter Installation Guide
